Stanley Planes Type 19

From Hyperkiten Tool Company Wiki
Jump to navigationJump to search

Planes made by Stanley 1948-1961.

Distinguishing Features (changes from previous type in bold)

  • The frog receiver, in the bottom casting, now is y-shaped.
  • Rosewood is re-introduced, and is often varnished so heavily that it almost obscures the grain.
  • “STANLEY” is now incised in a vertical direction on the lateral adjustment lever.
  • The original type study doesn’t mention this, but on some of the models of this type “STANLEY” is stamped on both sides of the lateral adjustment lever. I’ve seen enough of these to convince me that’s it wasn’t accidental, or if it was, it was a big screw-up.
  • The knurling on the brass depth adjuster is now parallel on most examples.
  • Later examples have the familiar black paint on the hardwood tote and knob.
  • Type study doesn’t mention this, but the cutters now have rounded tops instead of the angular top. This change happened in the mid–1950’s, in my opinion.
  • Furthermore, the original type study doesn’t mention the change in the finish applied on the forked lever. For a short while, some models had a nickel plated appearance on them as a finish rather than the usual black japanning. Where in the sequence of actual manufacturing this subtle change fits is unknown to me, but I’ve only noticed it on those planes equipped with rosewood knobs and totes and rounded irons.
  • Kidney-shaped hole in the lever cap.
  • “STANLEY”, inside the notched rectangle, with “MADE IN U.S.A.” logo stamped on the cutter.The toe has a raised, broad, flat rib cast into it. A similar rib is found at the heel.
  • The frog has an ogee-shape (s-shape) to the back, on either side of the lateral adjustment lever.
  • “MADE IN U.S.A.” is cast behind the frog.
  • No patent dates behind the frog.
  • “BAILEY” is cast behind the knob toward the rib, and the number is cast in front of the knob at the leading edge of the bottom casting.
  • A raised ring is cast into the bed to act as a receiver for the knob.
  • High Knob
  • Flat head screws now hold the frog in place.

All commentary comes from the original Stanley Bench Plane Type Study

Related Photographs

Ogee-Shaped Frog Back

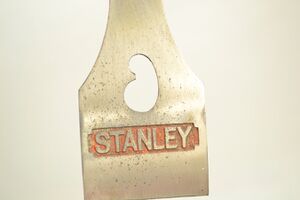

Kidney-Shaped Hole in Lever Cap
